Transport Grade ACP

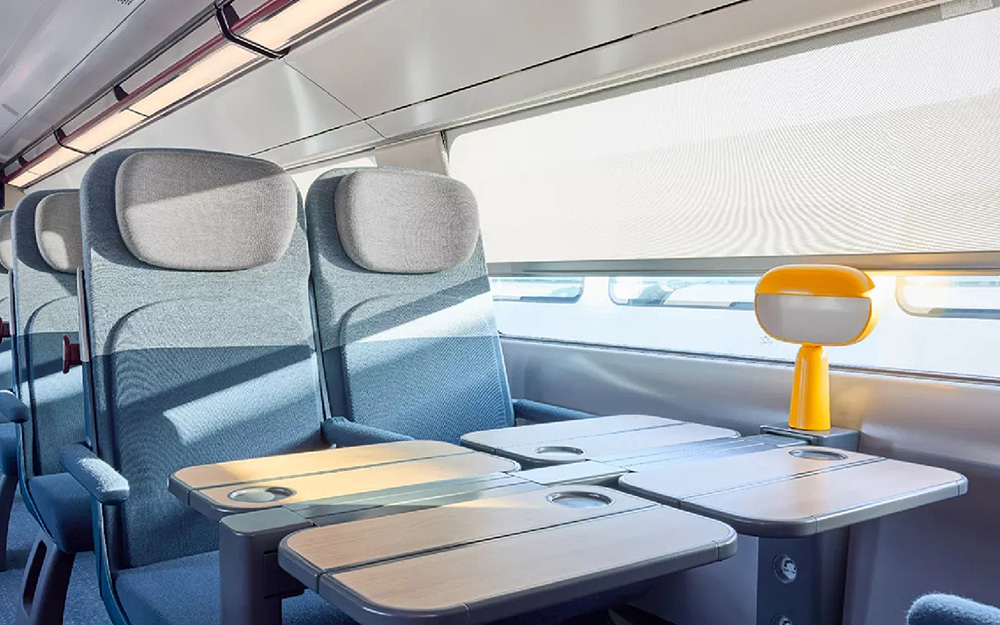

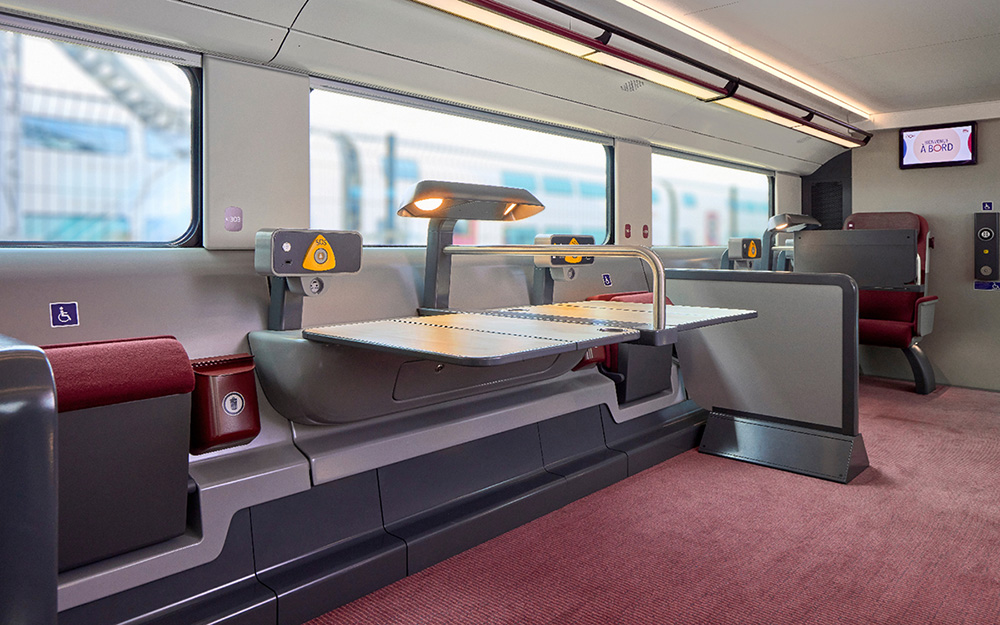

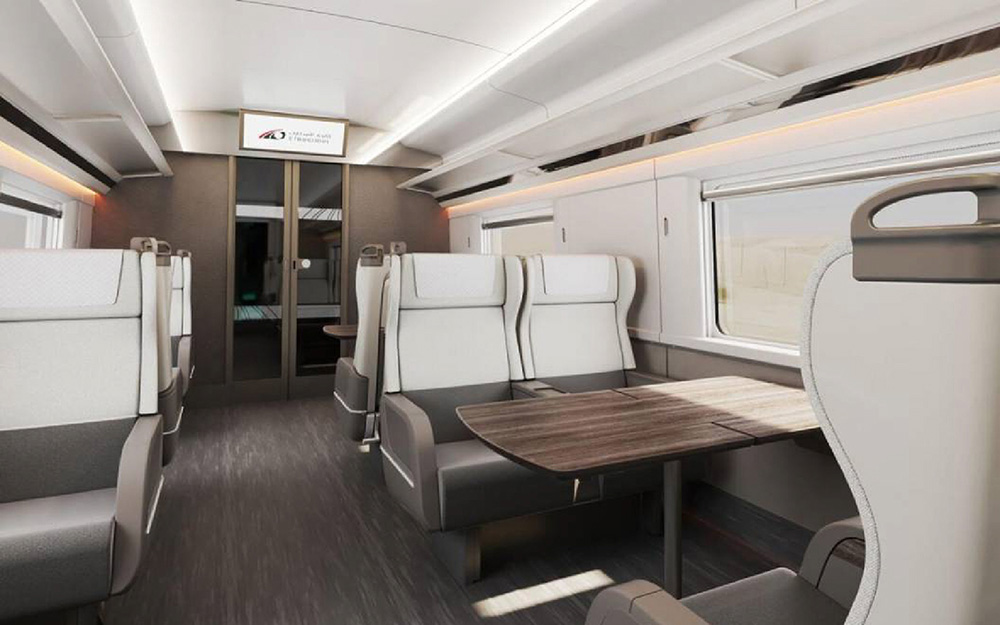

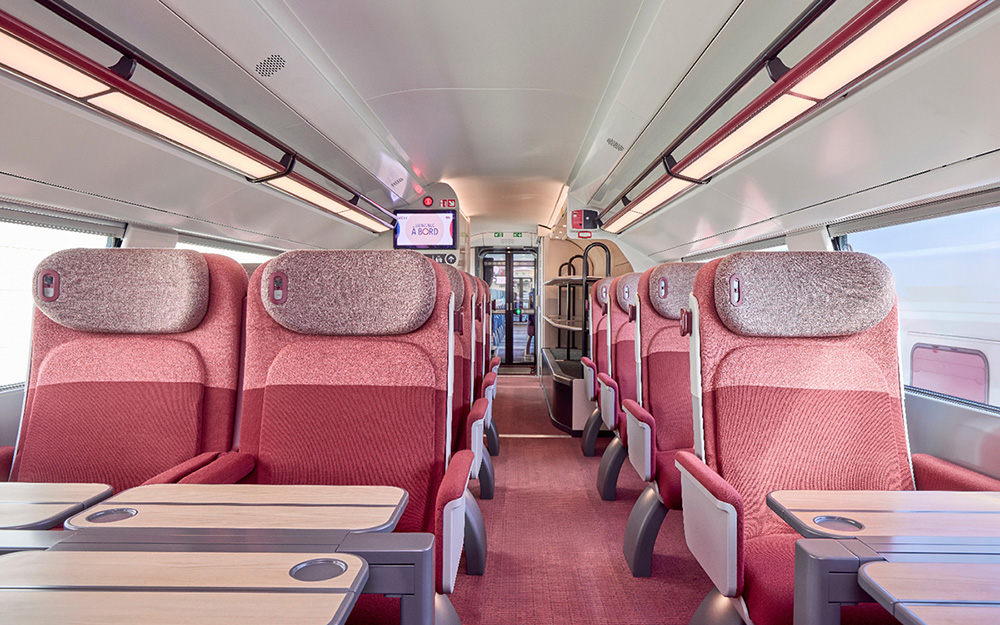

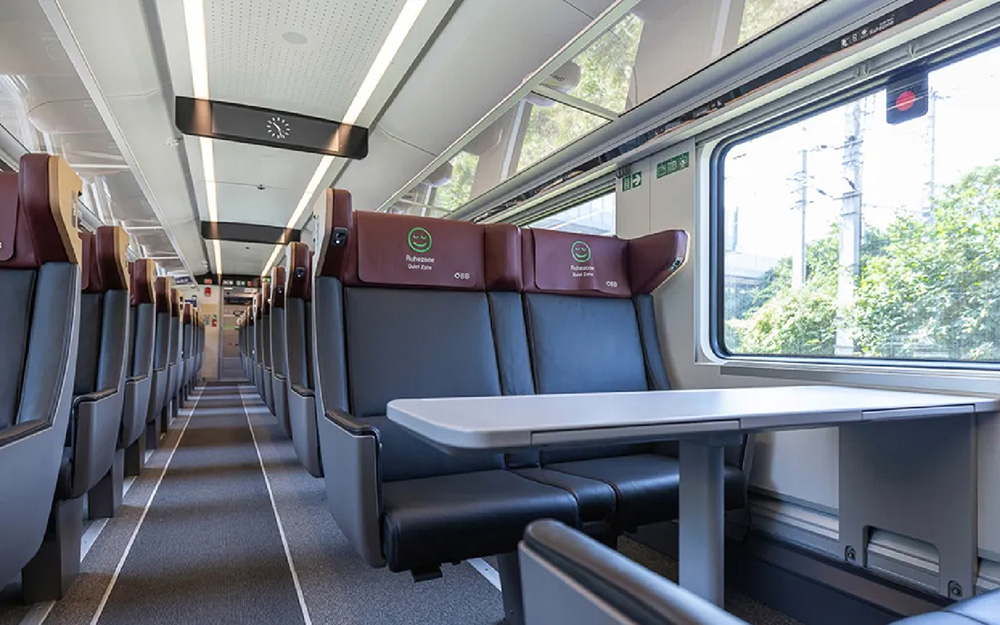

With the increasing aesthetic requirements for high-speed rail and RV interiors, people's demands for comfortable environments on the road are also growing. At present, traditional spraying techniques and heat transfer printing methods cannot fundamentally solve the problems of color difference, scratch resistance, and weather resistance on the surface of profiles.

As the mainstream surface treatment method for current profiles, laminated profiles have good chemical stability and durability, and are widely used in high-speed rail and RV interiors spaces. From a mechanical perspective, they have extremely strong tensile strength, tear resistance, heat resistance, durability, and fire resistance.

Transport Grade ACP products are equally suitable for application scenarios such as commercial projects, residential interiors, hospital interiors, train stations, and public building interiors.

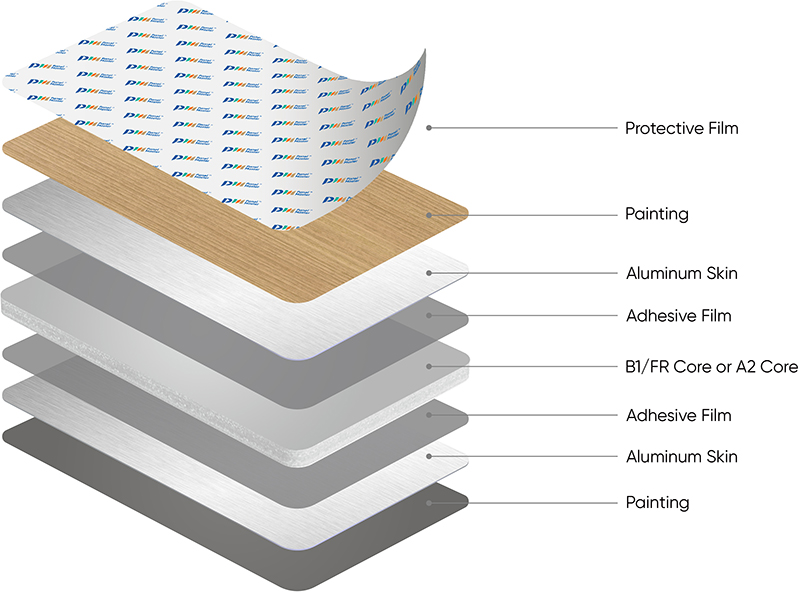

Transport Grade ACP can be classified into B1/FR grade and A2 grade based on the type of core material used.

Pre-coated
Aluminum Composite Panel
PVC laminated
Aluminum Composite Panel

Pre-coated
Aluminum Composite Panel

Colors & Finishes Processing Method

The Validated and Tested Product
Features and Advantages of Panel Master Include

Wide range of colors & finishes
Ability to be perforated
Ease of fabrication
Durability
Formability
Flatness & Rigidity

Technical Data

Item	units	Pre-coated ACP
Thickness	mm	4, 6
Width	mm	800~2050
Length	mm	1500~8000
Color and surface coating		With monochrome, metal color, magic color, imitation aluminum color, imitation wood grain color and other surface effect series

Special specifications and colors can be negotiated

Performance index

Item	units	Pre-coated ACP
Aluminum thickness on both sides	mm	0.5
Weight	kg/㎡	7.5, 10.7
Modulus of section	W(cm³/m)	1.75
Composite plate stiffness	E.J[kN(c㎡/m)]	2400, 5900
Aluminum alloy		3003/5005
Alloy state		H24
Modulus of elasticity	N/m㎡	28000
Tensile strength of aluminum alloy	N/m㎡	R_m≥130
0.2% yield stress	N/m㎡	R_P0.2≥90
Rate of elongation		A₅₀≥4
Linear coefficient of thermal expansion		2.4mm/m Temperature difference of 100°C
Resistance to temperature difference		-50°C~+80°C
Bending strength	MPa	≥100
Flexural elastic modulus	MPa	≥2.0*10⁴
Penetration resistance	kN	≥7
Shear strength	MPa	≥22
Peeling force	[(N·mm)/mm]	Average ≥110, Minimum ≥100
Sound absorption index	α	0.05
Sound insulation index	Rw（dB）	26, 27
Heat transfer coefficient	W/mK	5.53, 5.3

* The above parameters are measured data of Panel Master laboratory, for reference only, the final data is subject to the actual product

Product Range

Pre-coated ACP Thickness: 4mm (6mm on request)

Width (mm)	1000	1250	1500	1550	1750	2000
Length (mm)	2000~8000	2000~8000	2000~8000	2000~8000	2000~8000	2000~8000
Standard Series	●	●	●	●	●	●
Wooden Stone Series	●	●	●	●	-	-
Spectra Series	●	●	●	●	●	●
Brushed Mirror Series	●	●	●	-	-	-
Texture Velvet Series	●	●	●	●	●	●
Diffuse Reflection	●	●	●	●	●	●
Copper Stainless Steel	●	●	-	-	-	-
Zinc Series	○	●	-	-	-	-
Anodized Look Series	●	●	●	●	●	●

The delivery time and minimum quantity vary according to size and thicknesses.
Other dimensions are available on request. ○ on request

Fire Resistance Classification

Country	Test accord. to…	Pre-coated ACP
EU	EN 13501-1	Class B, s1, d0
Germany	EN 1187 (method1)/DIN 4102-7	passed
France	NF P 92-501	Class M1
UK	BS 476-6	Class 0
UK	BS 476-7	Class 1
Scandinavia	DS 1085-1
Switzerland	VKF	Class 5.3
Russia	GOST 30244-94	G1
	GOST 30402-95	W1
	GOST 12.1.044-89	D2
	GOST 12.1.044-89	T1
	GOST 31251-03
Australia	AS ISO 9705	Group 1 material
	AS ISO 9705	SMOGRA 1.385 m2/s2
	AS 1530-3 Indices	0 (ignitibility)
		0 (flame spread)
		0 (heat evolved)
		0-1 (smoke developed)
	EN 13501-1	B, s1, d0
USA	ASTM-E 84	Class A
USA	NFPA285	passed
