A2 Aluminum Composite Panel-Panel Master

Building Grade ACP

Panel Master Building Grade ACP (Apex series) is one of our product series which is produced by composing two smooth 0.5mm thick aluminum (or other metal) sheets to a solid non-combustible or fire-retardant core through a high-temperature process. It is specifically designed to allow architects and designers to use ACM (ACP) as the preferred material for building facades while meeting the fire performance requirements outlined in the International Building Code (IBC).

Each panel is coated with PVDF paint in strict accordance with a 70/30 ratio (containing 70% polyvinylidene fluoride and 30% acrylic resin) to ensure maximum aging resistance and superior UV protection.

Building Grade ACP can be classified into B1/FR grade and A2 grade based on the type of core material used.

B1/FR
Aluminum Composite Panel
A2
Aluminum Composite Panel

Apex Series A2
Aluminum Composite Panel

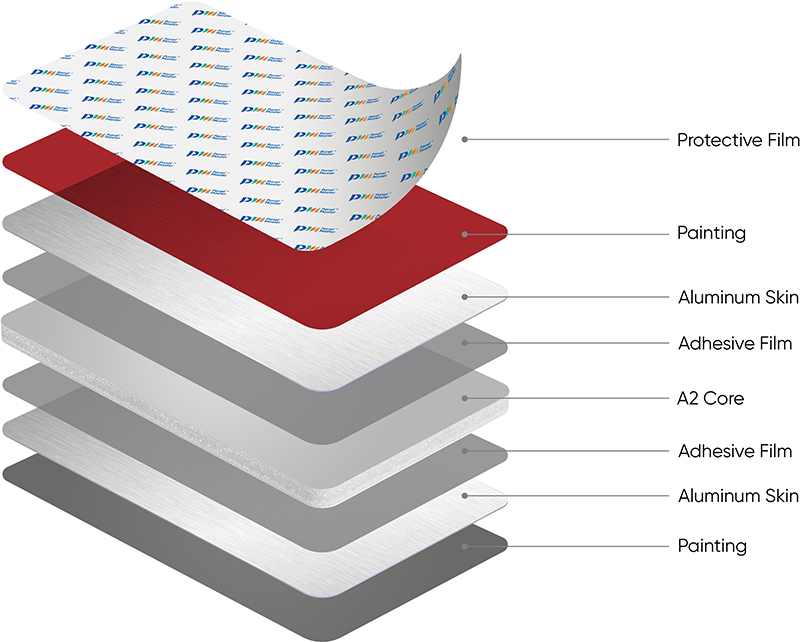

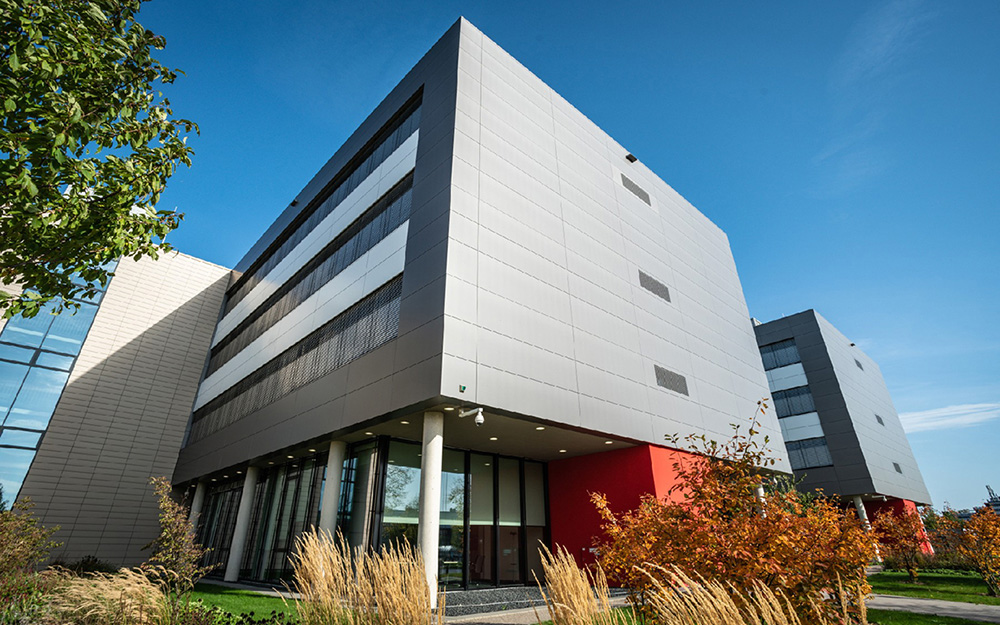

Panel Master A2 ACP non-combustible A2 is materials used for Composed with mineral-filled polymer fire retardant as core material,Composed with two sheets of aluminum alloy 3000 or 5000 series in large variety of colors such as PVDF solid/metallic colors or decorative film laminated.
Panel Master A2 ACP made with this technology have achieved world’s highest reaction to fire assistant standard “Class A2-s1,d0” when tested in accordance to European standard EN 13501-1,USA standard NFPA285.

Colors & Finishes Processing Method

The Validated and Tested Product
Features and Advantages of Panel Master Include

Wide range of colors & finishes
Ability to be perforated
Ease of fabrication
Durability
Formability
Flatness & Rigidity

Technical Data

Item	units	Panel Master Apex SERIES A2
Thickness	mm	4
Width	mm	1000~2000
Length	mm	2000~8000
Color and surface coating		With monochrome, metal color, magic color, imitation aluminum color, imitation wood grain color and other surface effect series

Special specifications and colors can be negotiated

Performance index

Item	units	Apex Series A2
Aluminum thickness on both sides	mm	0.5
Weight	kg/㎡	8.7
Modulus of section	W(cm³/m)	1.75
Composite plate stiffness	E.J[kN(c㎡/m)]	2400
Aluminum alloy		3003/5005
Alloy state		H24
Modulus of elasticity	N/m㎡	28000
Tensile strength of aluminum alloy	N/m㎡	R_m≥130
0.2% yield stress	N/m㎡	R_P0.2≥90
Rate of elongation		A₅₀≥4
Linear coefficient of thermal expansion		2.4mm/m Temperature difference of 100°C
Resistance to temperature difference		-50°C~+80°C
Bending strength	MPa	≥100
Flexural elastic modulus	MPa	≥2.0*10⁴
Penetration resistance	kN	≥7
Shear strength	MPa	≥22
Peeling force	[(N·mm)/mm]	Average ≥110, Minimum ≥100
Sound absorption index	α	0.05
Sound insulation index	Rw（dB）	26
Heat transfer coefficient	W/mK	5.8

* The above parameters are measured data of Panel Master laboratory, for reference only, the final data is subject to the actual product

Product Range

Apex Series A2 Thickness: 4mm (6mm on request)

Width (mm)	1000	1250	1500	1550	1750	2000
Length (mm)	2000~8000	2000~8000	2000~8000	2000~8000	2000~8000	2000~8000
Standard Series	●	●	●	●	●	●
Wooden Stone Series	●	●	●	●	-	-
Spectra Series	●	●	●	●	●	●
Brushed Mirror Series	●	●	●	-	-	-
Texture Velvet Series	●	●	●	●	●	●
Diffuse Reflection	●	●	●	●	●	●
Copper Stainless Steel	●	●	-	-	-	-
Zinc Series	○	●	-	-	-	-
Anodized Look Series	●	●	●	●	●	●

The delivery time and minimum quantity vary according to size and thicknesses.
Other dimensions are available on request. ○ on request

Fire Resistance Classification

Country	Test accord. to…	Apex Series A2
EU	EN 13501-1	Class A2, s1, d0
Germany	EN 1187 (method1)/DIN 4102-7	passed
France	NF P 92-501	Class M0, non combustible
UK	BS 476-6	Class 0
UK	BS 476-7	Class 1
Scandinavia	DS 1085-1	Class A
Switzerland	VKF	Class 6q.3
Russia	GOST 30244-94	G1
	GOST 30402-95	W1
	GOST 12.1.044-89	D2
	GOST 12.1.044-89	T1
	GOST 31251-03	k0
Australia	AS ISO 9705	Group 1 material
	AS ISO 9705	SMOGRA 1.385 m2/s2
	AS 1530-3 Indices	0 (ignitibility)
		0 (flame spread)
		0 (heat evolved)
		0-1 (smoke developed)
	EN 13501-1	A2, s1, d0
USA	ASTM-E 84	Class A
USA	NFPA285	passed
